Curved Customized 99% Sieve Bend Screen For Waste Water Wear Resistance

Product Categories
Hebei Standard Filter Equipment Co.,Ltd
Contact Now

Curved Customized 99% Sieve Bend Screen For Waste Water Wear Resistance

  • 1
  • 2

Brand Name : STD Filter

Model Number : STD SBS-013

Certification : CE，ISO9001

Place of Origin : Hebei,CN

MOQ : 1

Price : $50-500 /pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1 pcs per day,

Delivery Time : 7 days or customized time

Packaging Details : plastic in wooden package or standard export package

shape : bend,panel,round,customized

Type : Filter Element

Color : SS silver

Length : up to 2 meters or as required

width : up to 1 meter or customized

diameter : 1 meter or customized

Material : Stainless Steel

Usage : Filtration

Application : waste water

Filter rating : 99%

Feature : high resistance corrosion and wear resistance

Slot size : 0.1-6.0 mm

Contact Now

Stainless Steel Curved Customized Slot To 0.02 Mm Sieve Bend Screen For Waste Water

Materials:

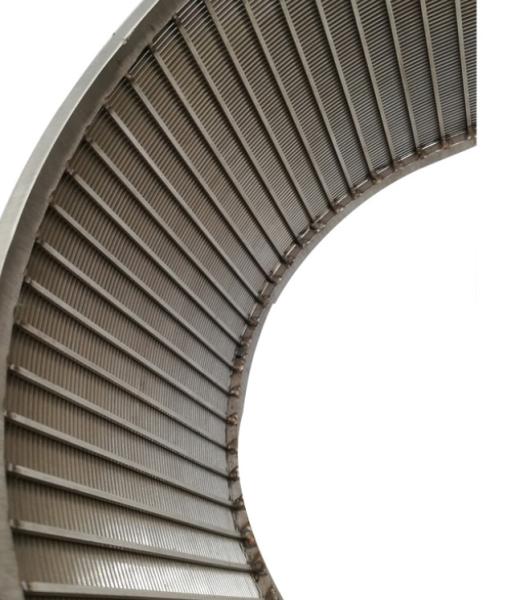

Sieve bend screen, also named as DSM screen, is a curved concave wedge bar type of screens made of stainless steel wedge wires.

Wedge wire dsm screen is manufactured by welding the stainless steel V-shaped profile wires to the wedge wire support rods. Then the wedge wire panel screens are cutting and curved into wedge wire sieve bend screen with common 45°,60° and other degree arcs. At last, the wedge wire sieve bends will be inserted into a stainless steel frame for easy installation onto equipment.

The Sieve Bend Screen is ideal for sizing and dewatering to remove the solid from water/liquid.It is passive and no need power.When water flowing from it.The water can pass through the slot and down it by the gravity,the solid be seperated from water.

No. (mm)TYPE OD (mm) ID(mm) SuppoTt wiTe NumbeT Filter diTection
1 STD25.4 25.4 18.6 12 FOTI
2 STD 33 33 24 8 FOTI
3 STD 37 37 28 8 FOTI
4 STD 40 40 31 8/10 FOTI/FITO
5 STD 45 45 36 10/12 FOTI/FITO
6 STD 48 48 38 12 FOTI/FITO
7 STD 60 60 51 12 FOTI/FITO
8 STD 70 70 61 12/18 FOTI/FITO
9 STD 85 85 76 18 FOTI/FITO
10 STD 110 110 101 24 FOTI/FITO
11 STD120 120 111 24 FOTI/FITO

Characteristic:

1.High filtering, sizing, dewatering performance.

2.Great capacity than the traditional vibrating screens.

3.Corrosion and rust resistance.

4.High temperature resistance.

5.Low maintenance. It is easy to clean and need less maintenance.

6.Non-clogging.

7.Long and durable service life.

The details of profiles:

Curved Customized 99% Sieve Bend Screen For Waste Water Wear Resistance

Curved Customized 99% Sieve Bend Screen For Waste Water Wear Resistance

Curved Customized 99% Sieve Bend Screen For Waste Water Wear Resistance

Application:

Curved Customized 99% Sieve Bend Screen For Waste Water Wear Resistance

Packages

Curved Customized 99% Sieve Bend Screen For Waste Water Wear Resistance

The Delivery

Curved Customized 99% Sieve Bend Screen For Waste Water Wear Resistance

Please Meet us on The http://www.wedgefilter.com
